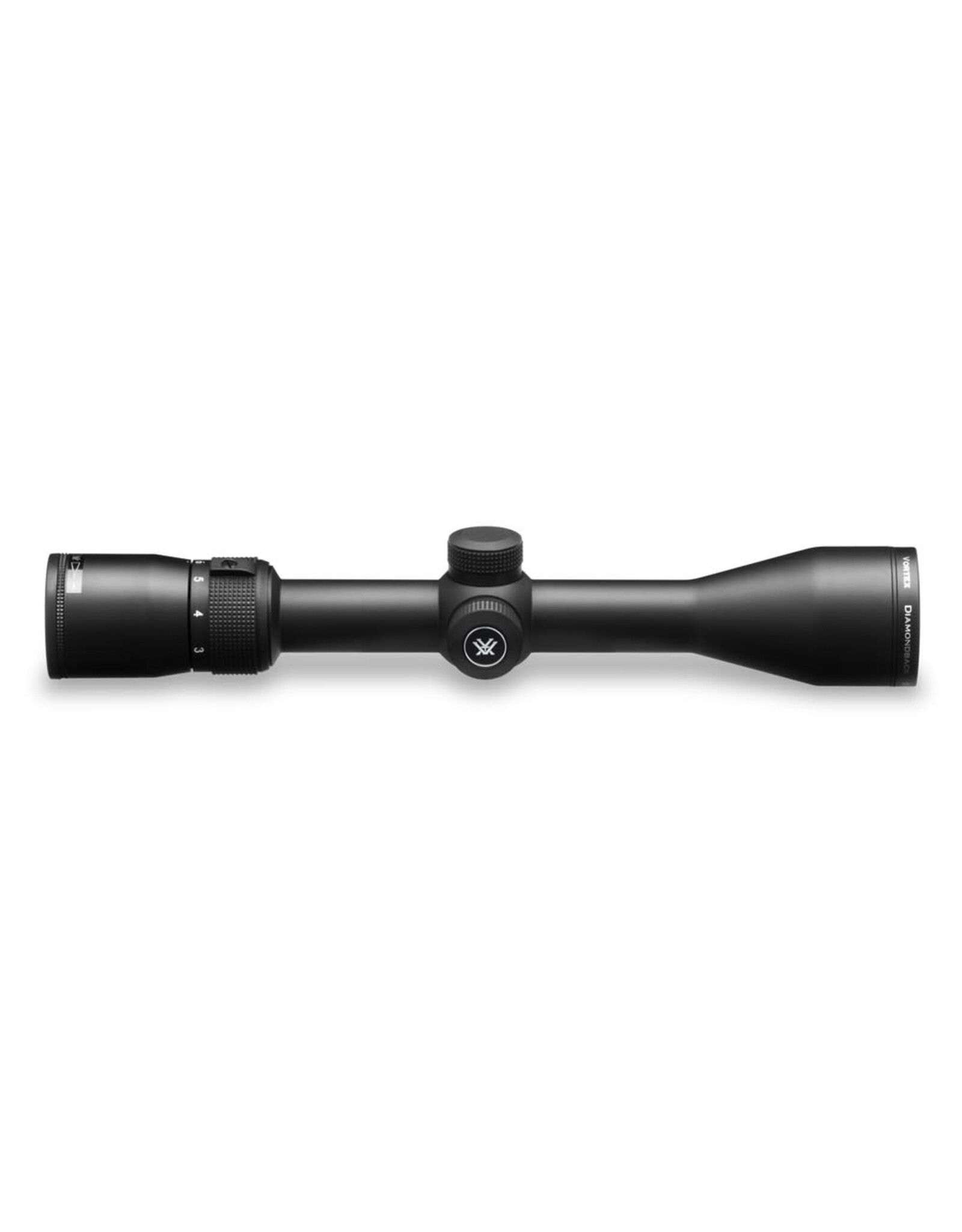

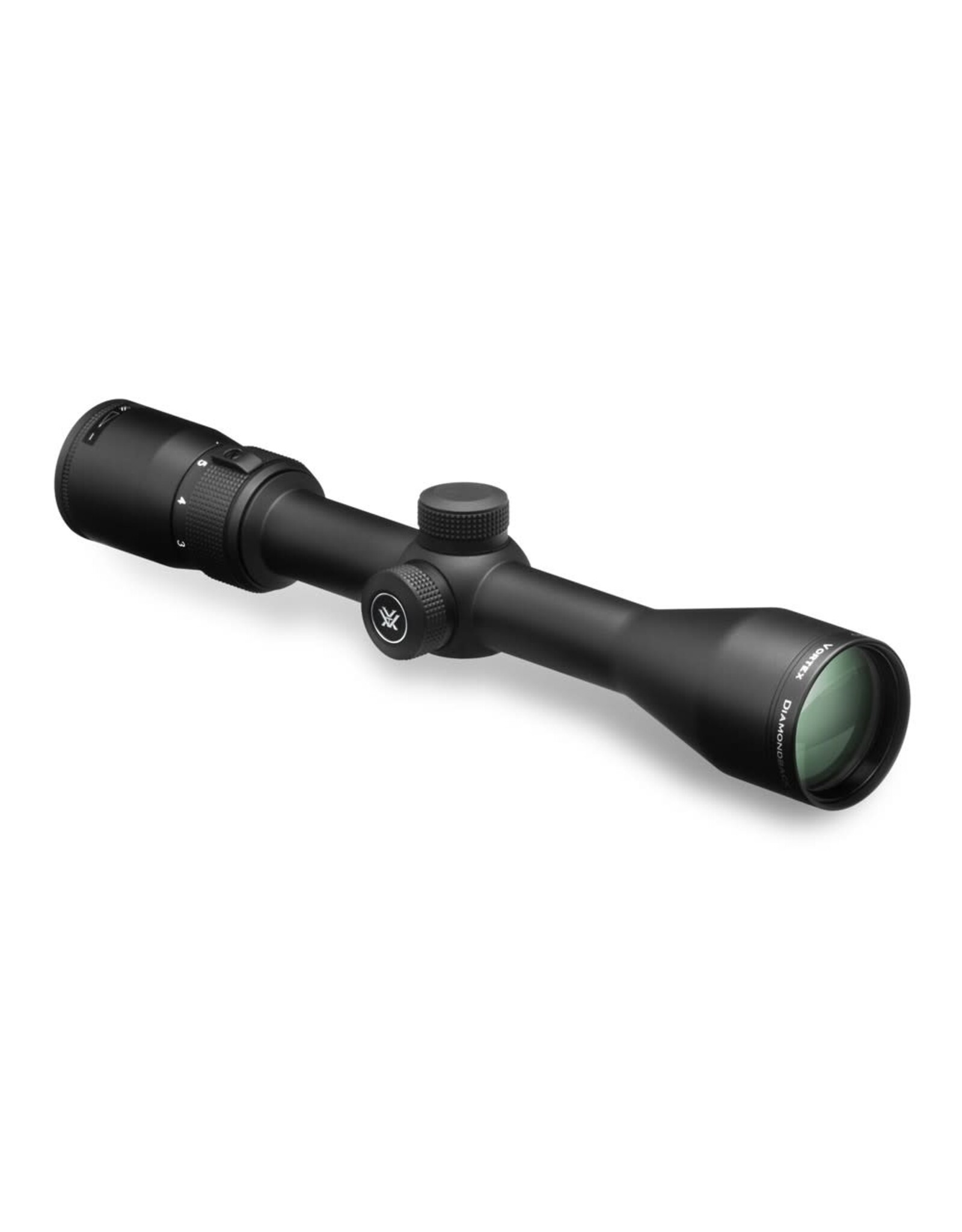

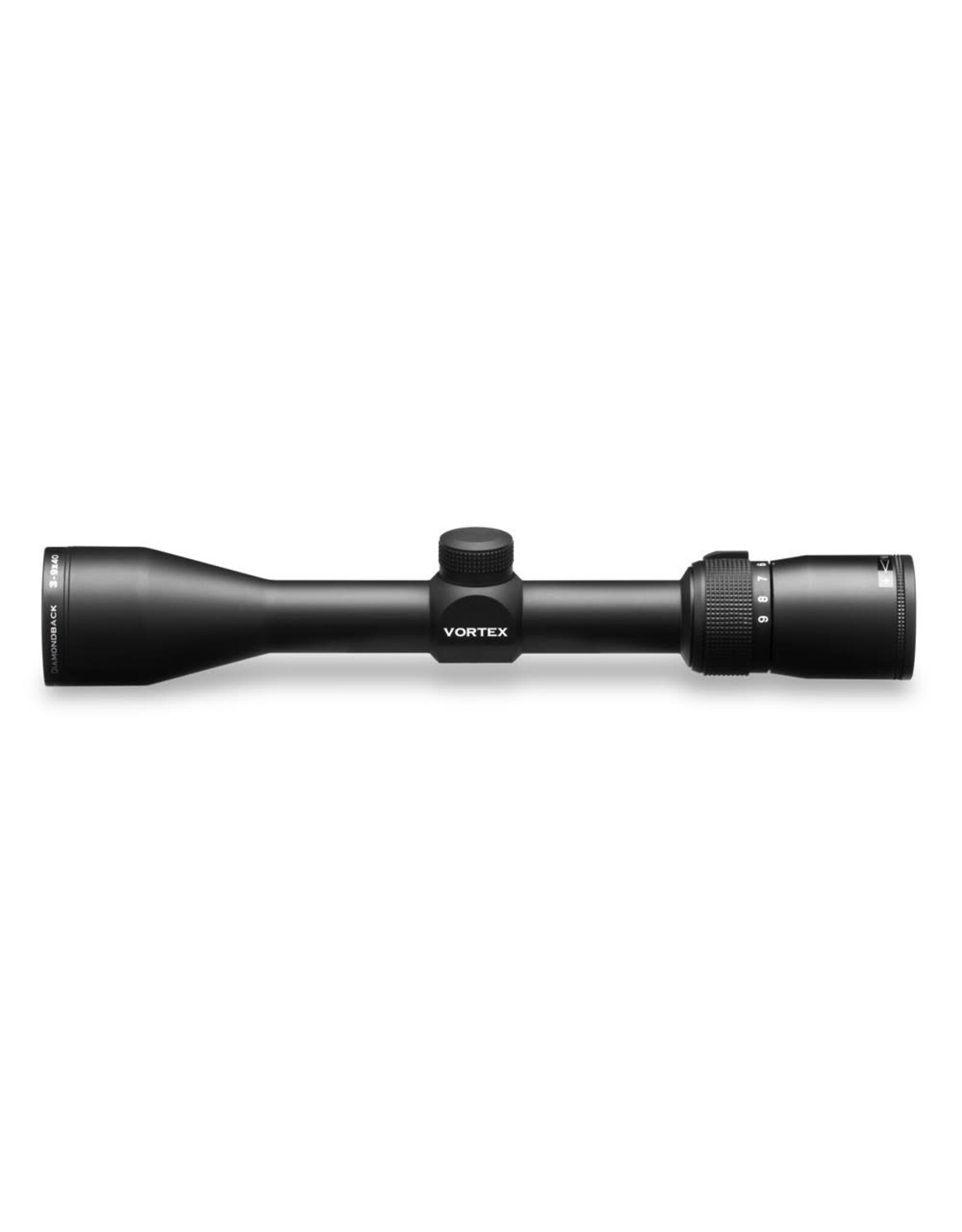

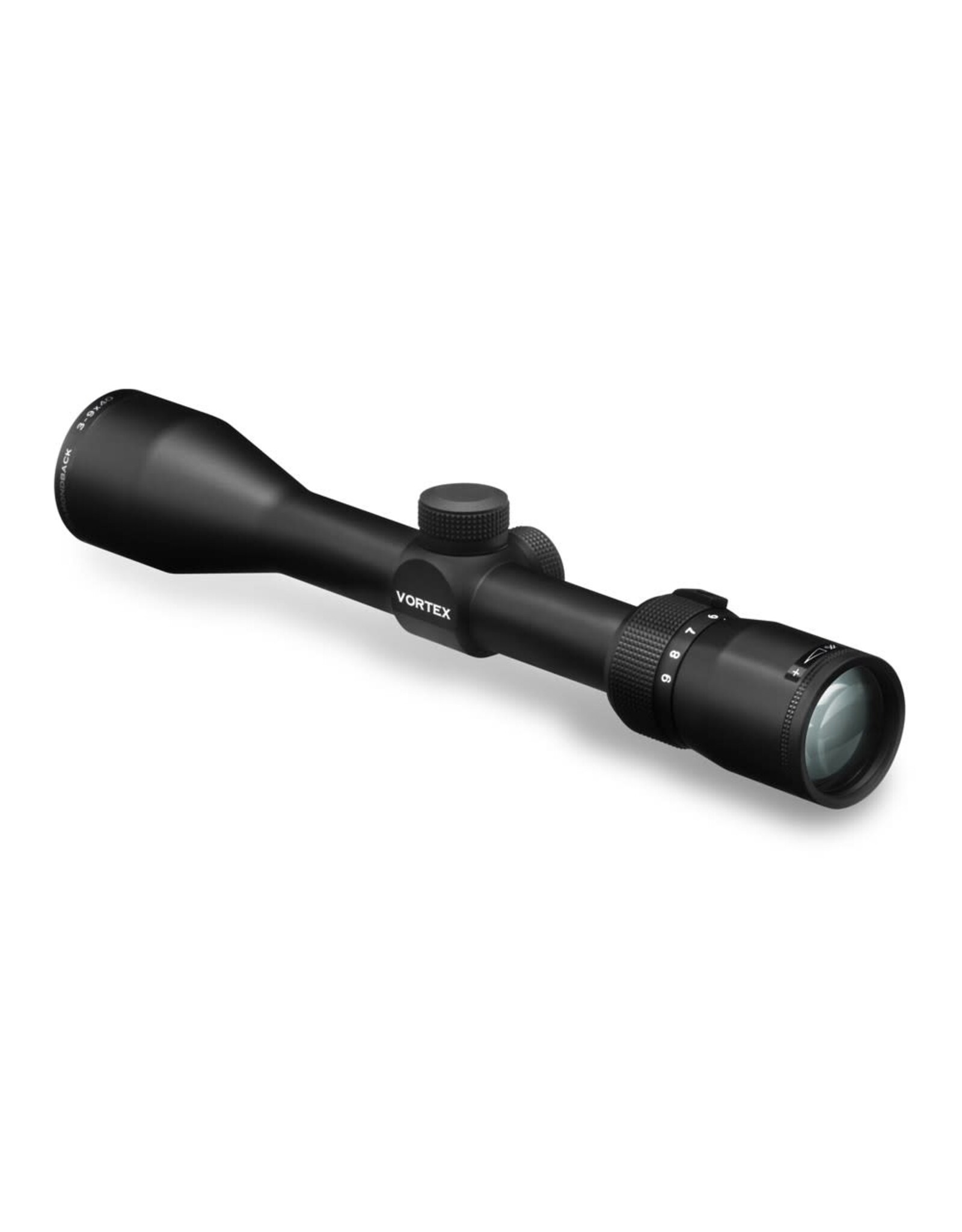

Vortex Diamondback 3-9x40 Riflescope V-Plex
VT-DBK-M-01P
Diamondback riflescopes are loaded with features. First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more, but doesn't.
| SKU |
VT-DBK-M-01P |
| Magnification |
3 – 9 |
| Objective Lens Diameter |
40 mm |
| Eye Relief |
3.3 inches |
| Field of View |
44.6–14.8 feet/100 yards |
| Tube Size |
1 inch |
| Turret Style |
Capped |
| Adjustment Graduation |
1/4 MOA |
| Travel per Rotation |
15 MOA |
| Max Elevation Adjustment |
70 MOA |
| Max Windage Adjustment |
70 MOA |
| Parallax Setting |
100 yards |
| Length |
11.61 inches |
| Weight |
14.4 ounces |
| Riflescope Manual (.pdf) |
Download PDF |
- Removable lens covers
- Lens cloth
| Lengths |
| L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
| 11.61 |
2.0 |
2.1 |
5.4 |
3.07 |
3.1 |
Dimensions measured in inches.
Optical Features
|
| Fully Multi-Coated |
Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle |
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
Construction Features
|
| Tube Size |
1-inch diameter. |
| Single-Piece Tube |
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum |
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof |
O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof |
Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof |
Rugged construction withstands recoil and impact. |
| Hard Anodized Finish |
Highly durable low-glare matte finish helps camouflage the shooter's position. |
| Precision-Glide Erector System |
Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
| Capped Reset Turrets |
Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret. |
Internal Mechanism Design Features
|
| Precision-Glide Erector System |
Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
Convenience Features
|

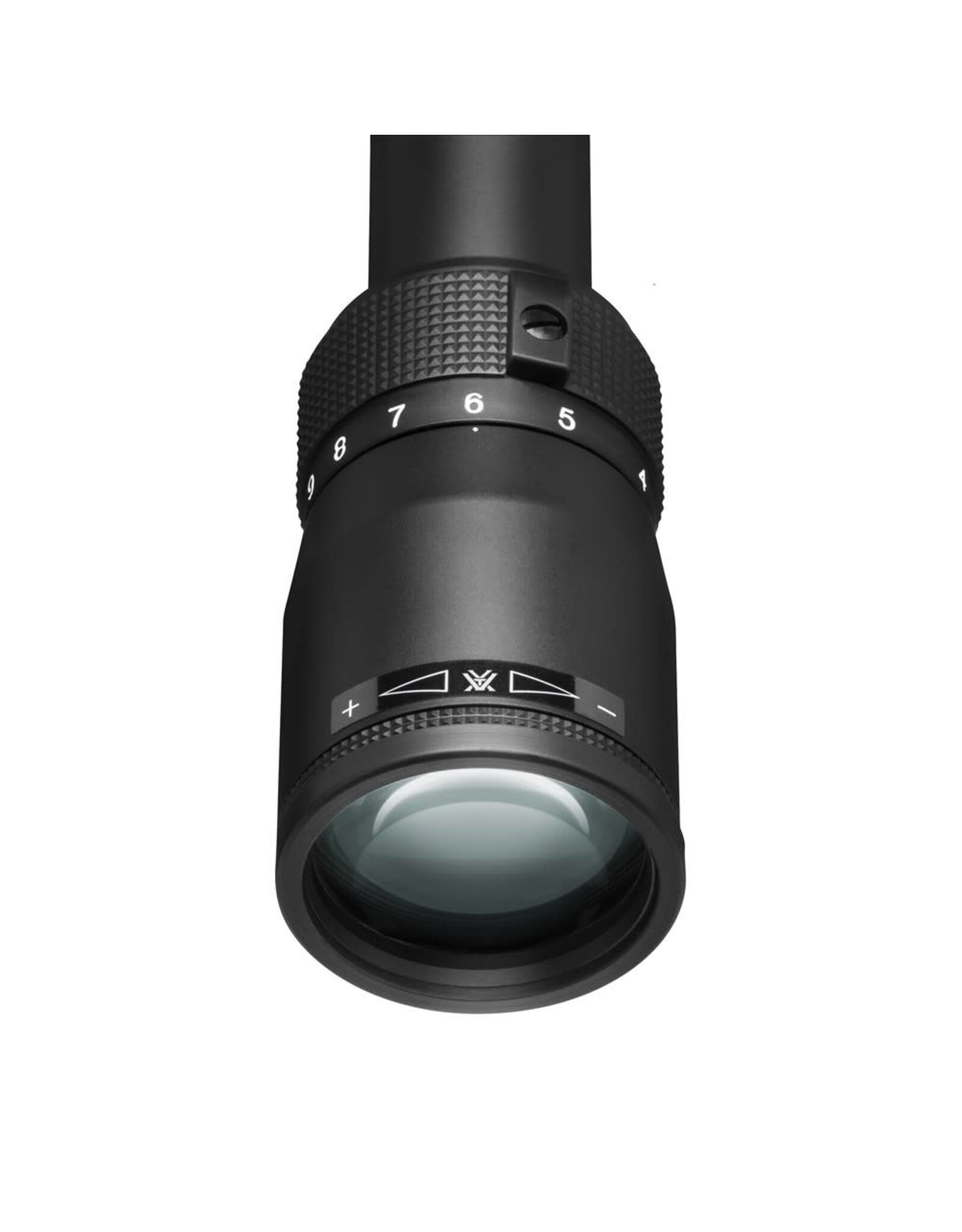

| Fast Focus Eyepiece |
Allows quick and easy reticle focusing. |
